Multichannel audio decorrelation with energy preservation

Tutorial goal

Reduce channel correlation while keeping total signal energy roughly unchanged.

Note

New to the terminology? See the lattice DSP concept map and the causality/data-use guide for how online, offline, block, and MIMO examples should be read.

Context

Decorrelators are useful for spatial audio and multichannel processing demos. The goal here is not perceptual tuning; it is to show that matrix all-pass/lattice transforms can change correlation structure without changing total power much.

Key idea and equations

Let \(x[n]\in\mathbb{R}^c\) be the input block and \(y[n]\) the decorrelated output. The sample covariance matrices are

\[R_x = \mathbb{E}\{x[n]x[n]^T\}, \qquad R_y = \mathbb{E}\{y[n]y[n]^T\}.\]

Decorrelation aims to reduce off-diagonal covariance terms, for example

\[r_{off}(R)= \frac{\sum_{i\ne j}|R_{ij}|}{\sum_i |R_{ii}|}.\]

The transform is chosen to be approximately all-pass/unitary, so total energy should remain nearly unchanged:

\[\frac{\sum_n\lVert y[n]\rVert_2^2} {\sum_n\lVert x[n]\rVert_2^2} \approx 1.\]

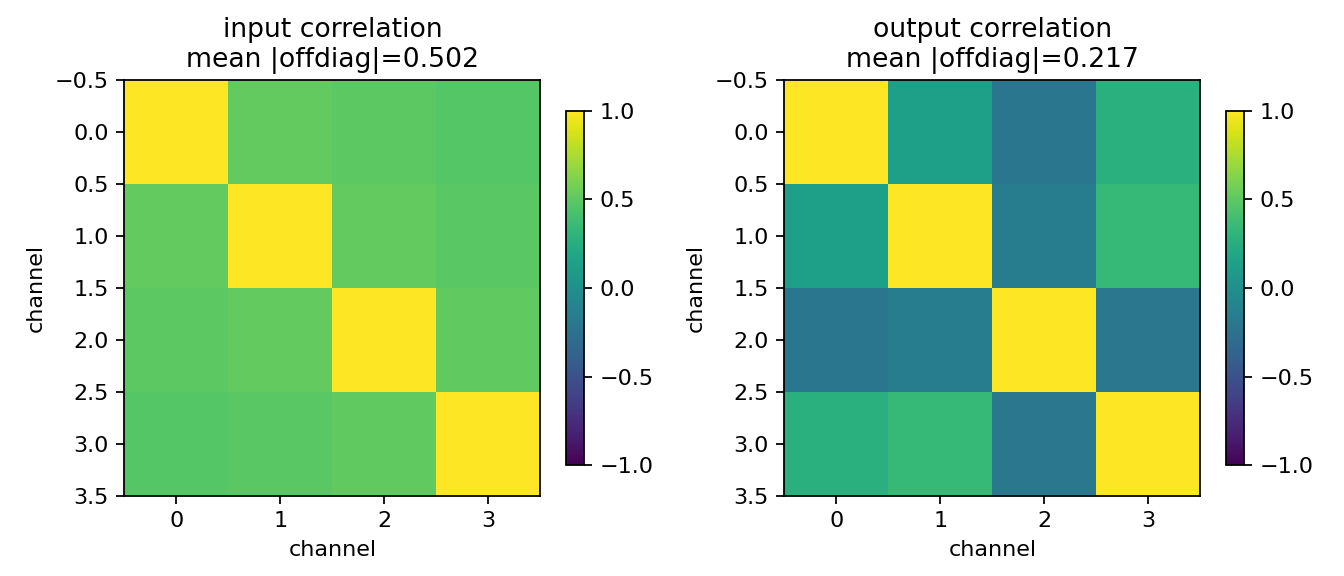

The correlation heatmaps show the before/after coupling, while the energy ratio checks that decorrelation did not simply attenuate the signal.

Causality and data use

This decorrelator uses the causal OnlineMatrixLatticeAllPass runtime. Each output frame depends only on the current input frame and previous lattice states. The reported finite-block energy ratio can differ slightly from one because short prefixes omit the decaying all-pass tail.

What this example verifies

This verifies a causal forward decorrelator. The online all-pass runtime should reduce off-diagonal covariance/correlation while preserving total energy after the filter tail is included. It is a DSP diagnostic, not a perceptual audio product claim.

How to read the result

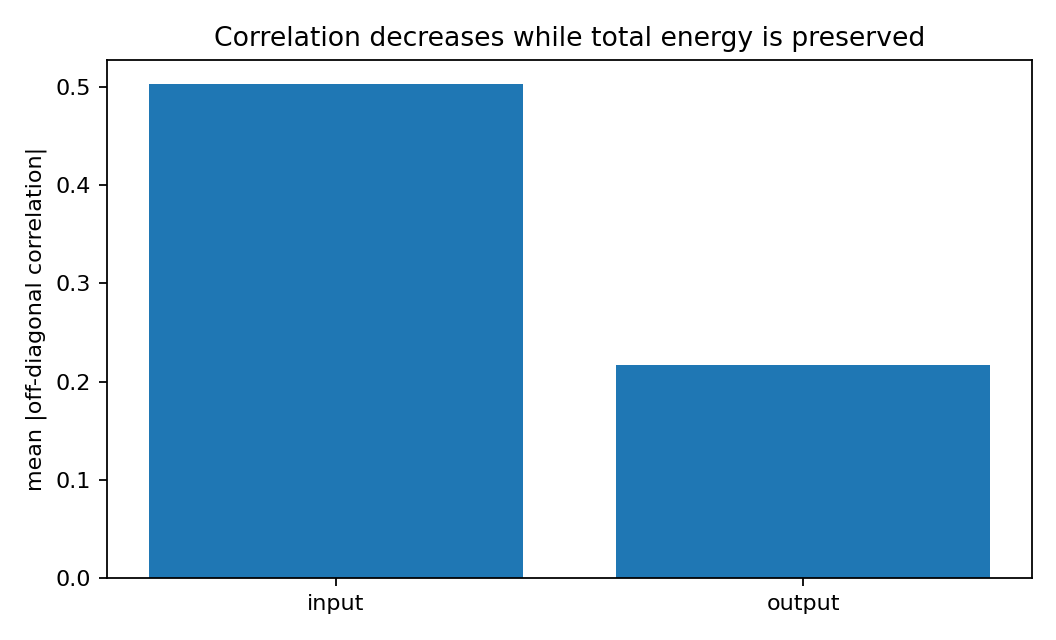

Use the before/after correlation matrices and summary bar plot to see the decorrelation effect; the energy ratio should remain close to one.

Run command

python examples/multichannel_audio_decorrelator.py

Run status

Return code: 0

Captured stdout

channels: 4
order: 5
max reflection singular value: 0.914259
input mean |offdiag corr|: 0.5024
output mean |offdiag corr|: 0.2171
decorrelation factor: 2.31 x
normalized energy ratio: 1.000000
takeaway: causal MIMO all-pass filtering can decorrelate channels without using future samples

Figures




Source code

"""Streaming multichannel audio decorrelation with a real matrix-lattice all-pass filter.

A real-coefficient matrix lattice all-pass filter can redistribute energy across
channels and frequency while preserving total power.  This example uses the
causal online runtime, so each output frame depends only on the current input
frame and previous lattice states.
"""

from __future__ import annotations

import os
from pathlib import Path

import numpy as np

from lattice_dsp import MatrixLatticeAllPass, contractive_matrix_from_raw, unitary_polar_factor


def _artifact_dir() -> Path:
    path = Path(os.environ.get("LATTICE_DSP_ARTIFACT_DIR", "reports/example-artifacts"))
    path.mkdir(parents=True, exist_ok=True)
    return path


def _make_real_filter(rng: np.random.Generator, channels: int, order: int) -> MatrixLatticeAllPass:
    reflections = [
        contractive_matrix_from_raw(0.45 * rng.normal(size=(channels, channels)))
        for _ in range(order)
    ]
    residue = unitary_polar_factor(rng.normal(size=(channels, channels)))
    return MatrixLatticeAllPass(reflections, residue=residue)


def _apply_real_streaming_filter(x: np.ndarray, filt: MatrixLatticeAllPass) -> np.ndarray:
    runtime = filt.to_online_filter()
    y = runtime.process(x)
    return np.real_if_close(y, tol=1000).real


def _mean_abs_off_diagonal_correlation(x: np.ndarray) -> float:
    corr = np.corrcoef(x, rowvar=False)
    upper = corr[np.triu_indices_from(corr, k=1)]
    return float(np.mean(np.abs(upper)))


def _save_figures(x: np.ndarray, y: np.ndarray, input_corr: float, output_corr: float) -> None:
    try:
        import matplotlib.pyplot as plt
    except ImportError:  # pragma: no cover - optional plotting dependency
        print("matplotlib is not installed; skipped figures")
        return

    out_dir = _artifact_dir()
    corr_x = np.corrcoef(x, rowvar=False)
    corr_y = np.corrcoef(y, rowvar=False)

    fig, axes = plt.subplots(1, 2, figsize=(8.4, 3.6))
    for ax, title, corr in (
        (axes[0], f"input correlation\nmean |offdiag|={input_corr:.3f}", corr_x),
        (axes[1], f"output correlation\nmean |offdiag|={output_corr:.3f}", corr_y),
    ):
        im = ax.imshow(corr, vmin=-1.0, vmax=1.0)
        ax.set_title(title)
        ax.set_xlabel("channel")
        ax.set_ylabel("channel")
        fig.colorbar(im, ax=ax, shrink=0.78)
    fig.tight_layout()
    path = out_dir / "multichannel_audio_decorrelator_correlation.png"
    fig.savefig(path, dpi=160)
    plt.close(fig)
    print(f"wrote {path}")

    segment = slice(0, 700)
    fig, ax = plt.subplots(figsize=(7.2, 4.0))
    ax.plot(x[segment, 0], label="input ch0")
    ax.plot(y[segment, 0], linestyle="--", label="output ch0")
    ax.set_xlabel("sample")
    ax.set_ylabel("normalized amplitude")

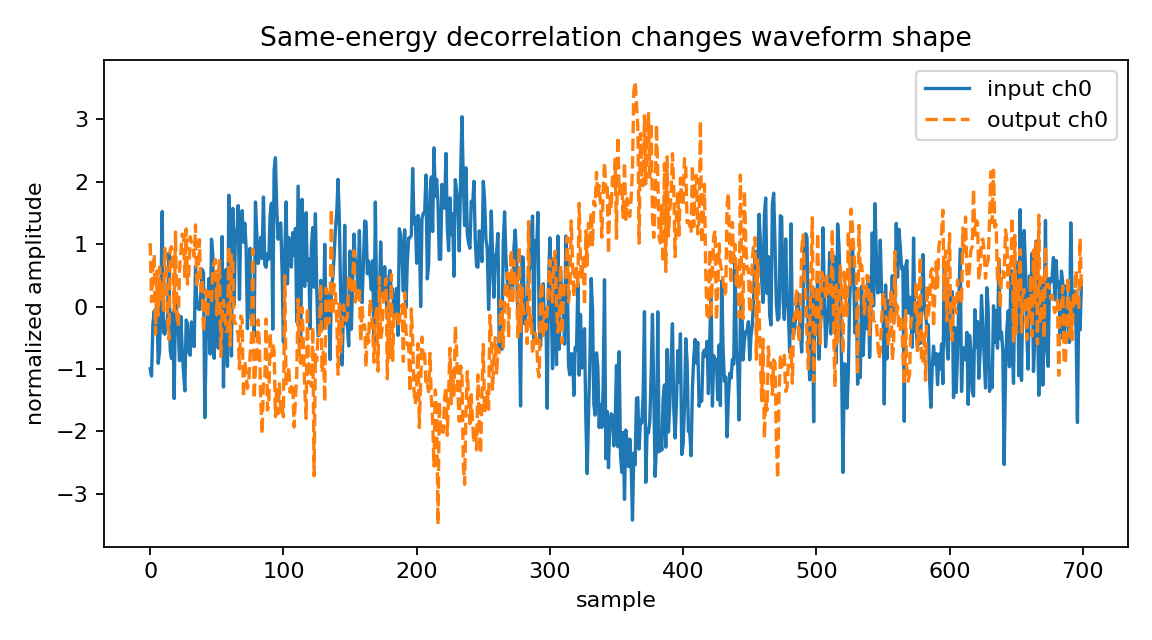

    ax.set_title("Same-energy decorrelation changes waveform shape")
    ax.legend(loc="best")
    fig.tight_layout()
    path = out_dir / "multichannel_audio_decorrelator_waveform.png"
    fig.savefig(path, dpi=160)
    plt.close(fig)
    print(f"wrote {path}")

    fig, ax = plt.subplots(figsize=(6.6, 4.0))
    ax.bar(["input", "output"], [input_corr, output_corr])
    ax.set_ylabel("mean |off-diagonal correlation|")
    ax.set_title("Correlation decreases while total energy is preserved")
    fig.tight_layout()
    path = out_dir / "multichannel_audio_decorrelator_corr_summary.png"
    fig.savefig(path, dpi=160)
    plt.close(fig)
    print(f"wrote {path}")


rng = np.random.default_rng(4)
channels = 4
order = 5
n_samples = 8192

# A smooth shared source creates highly correlated channels.  Small delays and
# independent noise make it more realistic than exact copies.
white = rng.normal(size=n_samples + 128)
source = np.convolve(white, np.ones(64) / 64.0, mode="valid")[:n_samples]
input_channels = []
for ch in range(channels):
    delayed = np.roll(source, 3 * ch)
    input_channels.append(0.9 * delayed + 0.1 * rng.normal(size=n_samples))
x = np.stack(input_channels, axis=1)
x = (x - x.mean(axis=0)) / x.std(axis=0)

filt = _make_real_filter(rng, channels, order)
y = _apply_real_streaming_filter(x, filt)
y = (y - y.mean(axis=0)) / y.std(axis=0)

input_corr = _mean_abs_off_diagonal_correlation(x)
output_corr = _mean_abs_off_diagonal_correlation(y)
energy_ratio = float(np.sum(y * y) / np.sum(x * x))

print("channels:", channels)
print("order:", order)
print("max reflection singular value:", round(filt.max_reflection_singular_value(), 6))
print("input mean |offdiag corr|:", round(input_corr, 4))
print("output mean |offdiag corr|:", round(output_corr, 4))
print("decorrelation factor:", round(input_corr / output_corr, 2), "x")
print("normalized energy ratio:", f"{energy_ratio:.6f}")
print(
    "takeaway: causal MIMO all-pass filtering can decorrelate channels without using future samples"
)

_save_figures(x, y, input_corr, output_corr)
