Tracking a drifting stable IIR system

Tutorial goal

Track a target system whose parameters slowly change over time.

Note

New to the terminology? See the lattice DSP concept map and the causality/data-use guide for how online, offline, block, and MIMO examples should be read.

Context

Real adaptive problems are not always stationary. This tutorial changes the target system gradually and checks whether bounded reflection adaptation can track the drift without crossing the stability boundary.

Key idea and equations

A useful diagnostic is the moving error power

\[\operatorname{MSE}_t = \frac{1}{W}\sum_{i=t-W+1}^{t} e_i^2.\]

How to read the result

The figure should show the tracking error over time. Slow drift should be followed; abrupt or very fast drift would require different tuning.

Run command

python examples/tracking_drifting_iir_system.py

Run status

Return code: 0

Captured stdout

true final reflection: [0.3499, -0.18]
learned final reflection: [0.278, -0.2344]
initial MSE: 0.07171581264812597
final MSE: 0.001748078090650818
minimum stability margin: 0.5686182643689661

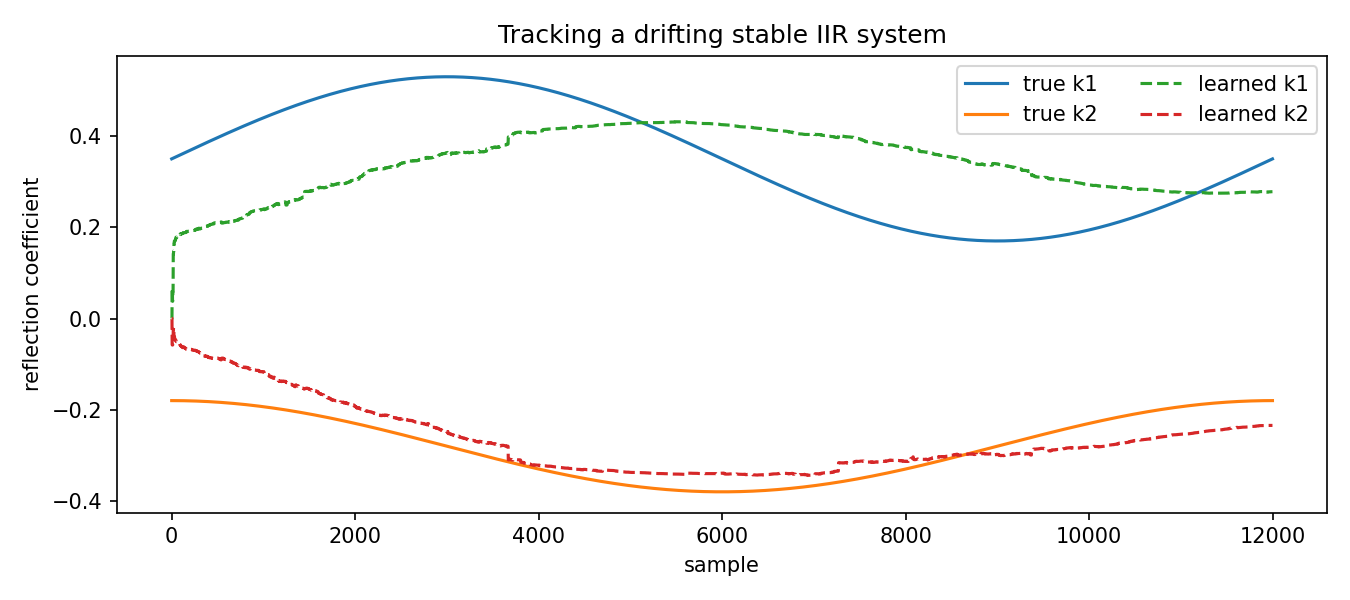

Figures


Source code

"""Track a slowly drifting stable IIR system.

The target filter changes its reflection coefficients over time.  The adaptive
model updates numerator taps and bounded raw reflection parameters, so the
learned denominator remains stable while tracking the drift.
"""

from __future__ import annotations

import os
from pathlib import Path

import numpy as np

from lattice_dsp import AdaptiveLatticeLadderNLMS, LatticeIIR


def artifact_dir() -> Path:
    """Return the directory for generated figures/data."""

    path = Path(os.environ.get("LATTICE_DSP_ARTIFACT_DIR", "reports/example-artifacts"))
    path.mkdir(parents=True, exist_ok=True)
    return path


def main() -> None:
    rng = np.random.default_rng(21)
    samples = 12_000
    n = np.arange(samples)
    x = rng.normal(size=samples)

    k1 = 0.35 + 0.18 * np.sin(2.0 * np.pi * n / samples)
    k2 = -0.28 + 0.10 * np.cos(2.0 * np.pi * n / samples)
    true_reflection_path = np.column_stack([k1, k2])
    numerator = [0.45, -0.1, 0.55]

    target = LatticeIIR(true_reflection_path[0].tolist(), numerator)
    adaptive = AdaptiveLatticeLadderNLMS(
        initial_reflection=[0.0, 0.0],
        initial_taps=[0.0, 0.0, 0.0],
        mu_taps=0.04,
        mu_reflection=0.001,
        margin=1e-4,
        reflection_update_period=4,
        scale_reflection_mu_by_period=True,
    )

    desired = np.zeros(samples, dtype=float)
    error = np.zeros(samples, dtype=float)
    learned = np.zeros_like(true_reflection_path)

    for i in range(samples):
        target.set_reflection_preserve_state(true_reflection_path[i].tolist())
        desired[i] = target.process_sample(float(x[i]))
        _, error[i] = adaptive.adapt_sample(float(x[i]), float(desired[i]))
        learned[i] = np.asarray(adaptive.reflection, dtype=float)

    print("true final reflection:", np.round(true_reflection_path[-1], 4).tolist())
    print("learned final reflection:", np.round(learned[-1], 4).tolist())
    print("initial MSE:", float(np.mean(error[:1000] ** 2)))
    print("final MSE:", float(np.mean(error[-1000:] ** 2)))
    print("minimum stability margin:", float(1.0 - np.max(np.abs(learned))))

    try:
        import matplotlib.pyplot as plt
    except Exception:
        return

    fig, ax = plt.subplots(figsize=(9, 4))
    ax.plot(true_reflection_path[:, 0], label="true k1")
    ax.plot(true_reflection_path[:, 1], label="true k2")
    ax.plot(learned[:, 0], "--", label="learned k1")
    ax.plot(learned[:, 1], "--", label="learned k2")
    ax.set_title("Tracking a drifting stable IIR system")
    ax.set_xlabel("sample")
    ax.set_ylabel("reflection coefficient")
    ax.legend(ncol=2)
    fig.tight_layout()
    out = artifact_dir() / "tracking_drifting_iir_system.png"
    fig.savefig(out, dpi=150)
    print(f"wrote {out}")


if __name__ == "__main__":
    main()
