Block Levinson versus dense block-Toeplitz solve

Tutorial goal

Compare structured vector AR estimation against a dense direct solve.

Note

New to the terminology? See the lattice DSP concept map and the causality/data-use guide for how online, offline, block, and MIMO examples should be read.

Context

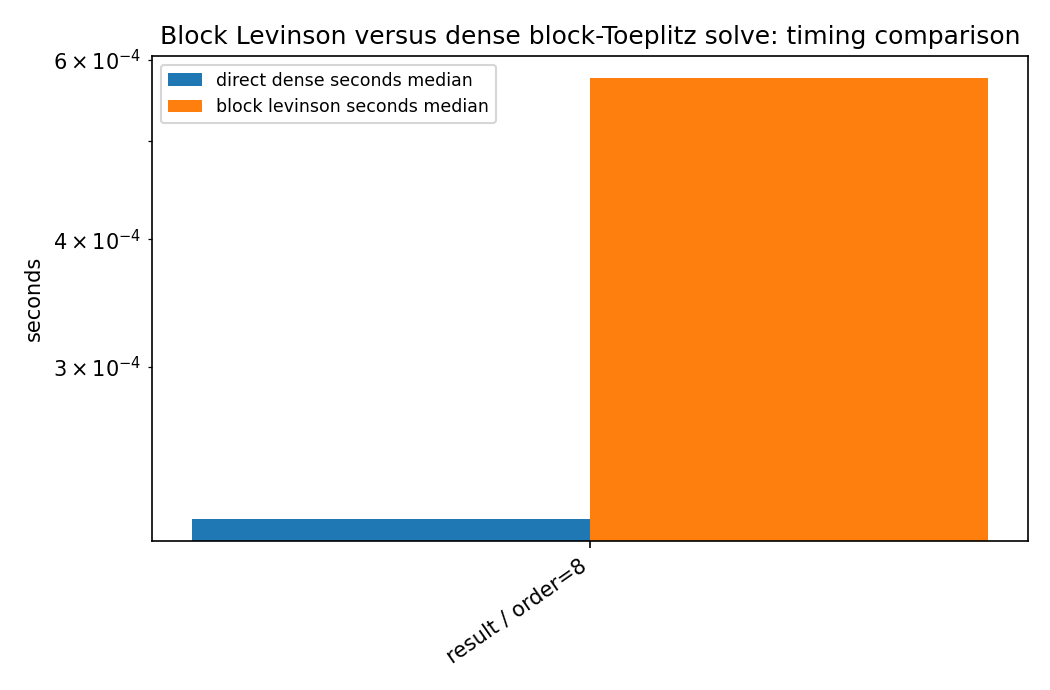

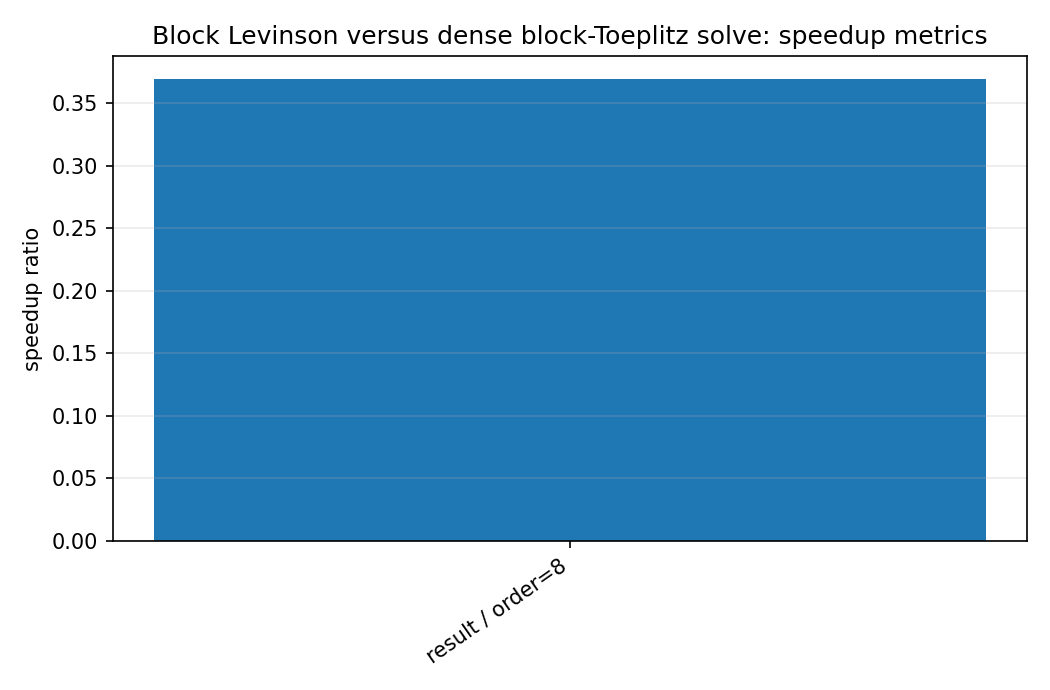

This benchmark validates the multichannel AR implementation by comparing block Levinson-Durbin coefficients with a dense block-Toeplitz solve. It is currently more of a numerical validation benchmark than a speedup claim.

Key idea and equations

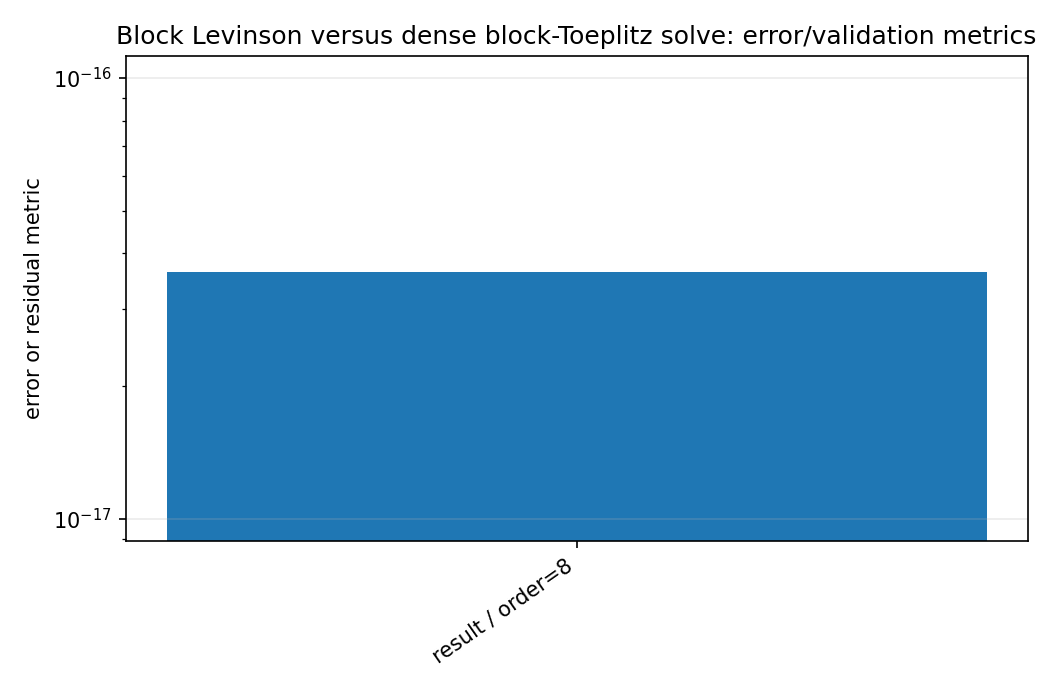

The key numerical diagnostic is the coefficient difference norm between the two solutions.

How to read the result

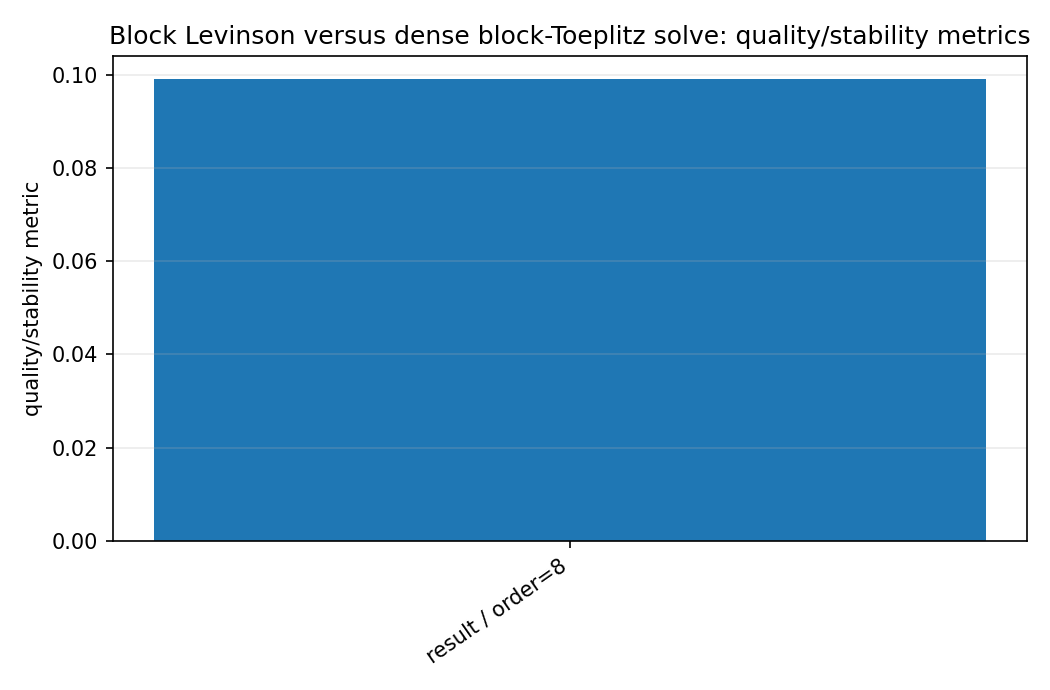

Small coefficient differences validate the recursion. Reflection spectral norms below one indicate a stable matrix-reflection sequence.

Run command

python benchmarks/block_levinson_benchmark.py --channels 4 --order 8 --samples 20000 --repeats 3 --output docs/benchmarks/generated/_artifacts/block_levinson/block-levinson.json

Run status

Return code: 0

Visual and data readout

When the benchmark gallery is built with results, this page embeds PNG summaries generated from the same JSON/CSV artifacts. The raw data stay available below as downloads so exact numbers remain reproducible without making the public page read like console output.

Figures





Generated data files

• block-levinson.json

Source code

"""Benchmark dense block Yule-Walker solve versus block Levinson recursion."""

from __future__ import annotations

import argparse
import json
import time
from pathlib import Path

import numpy as np

import lattice_dsp as ld


def simulate_var(channels: int, order: int, samples: int, seed: int) -> np.ndarray:
    rng = np.random.default_rng(seed)
    coeffs = []
    for lag in range(order):
        raw = rng.standard_normal((channels, channels))
        # Small, diagonally dominant coefficients keep the VAR stable.
        coeffs.append((0.18 / (lag + 1)) * raw / max(channels, 1))
    radius = ld.companion_spectral_radius(np.asarray(coeffs))
    if radius >= 0.85:
        scale = 0.85 / radius
        coeffs = [scale * a for a in coeffs]

    x = np.zeros((samples + 512, channels))
    noise = rng.normal(size=x.shape)
    for n in range(order, x.shape[0]):
        y = noise[n].copy()
        for lag, a_lag in enumerate(coeffs, start=1):
            y -= a_lag @ x[n - lag]
        x[n] = y
    return x[512:]


def median_time(fn, repeats: int) -> float:
    times = []
    for _ in range(repeats):
        t0 = time.perf_counter()
        fn()
        times.append(time.perf_counter() - t0)
    return float(np.median(times))


def main() -> None:
    parser = argparse.ArgumentParser()
    parser.add_argument("--channels", type=int, default=4)
    parser.add_argument("--order", type=int, default=12)
    parser.add_argument("--samples", type=int, default=50000)
    parser.add_argument("--repeats", type=int, default=5)
    parser.add_argument("--output", type=Path, default=None)
    args = parser.parse_args()

    x = simulate_var(args.channels, args.order, args.samples, seed=123)
    r = ld.multichannel_autocorrelation(x, order=args.order)

    direct = ld.solve_block_yule_walker_direct(r, order=args.order)
    levinson = ld.block_levinson_durbin(r, order=args.order)
    coeff_diff = float(np.linalg.norm(direct.coefficients - levinson.coefficients))

    direct_time = median_time(
        lambda: ld.solve_block_yule_walker_direct(r, order=args.order), args.repeats
    )
    levinson_time = median_time(lambda: ld.block_levinson_durbin(r, order=args.order), args.repeats)

    result = {
        "channels": args.channels,
        "order": args.order,
        "samples": args.samples,
        "repeats": args.repeats,
        "direct_dense_seconds_median": direct_time,
        "block_levinson_seconds_median": levinson_time,
        "speedup_direct_over_levinson": direct_time / levinson_time
        if levinson_time
        else float("inf"),
        "coefficient_difference_norm": coeff_diff,
        "max_reflection_spectral_norm": float(np.max(levinson.reflection_spectral_norms)),
    }

    print(json.dumps(result, indent=2))
    if args.output is not None:
        args.output.parent.mkdir(parents=True, exist_ok=True)
    args.output.write_text(json.dumps(result, indent=2) + "\n")


if __name__ == "__main__":
    main()
