Matrix-lattice all-pass runtime benchmark

Tutorial goal

Compare compiled matrix-lattice frequency-response evaluation with the NumPy reference evaluator.

Note

New to the terminology? See the lattice DSP concept map and the causality/data-use guide for how online, offline, block, and MIMO examples should be read.

Context

Matrix lattice filters are most often used as compact frequency-dependent multichannel all-pass/scattering responses. This benchmark measures the response-evaluation runtime for different channel dimensions and lattice orders, comparing the compiled C++ evaluator with the small NumPy reference implementation.

Key idea and equations

The benchmark reports

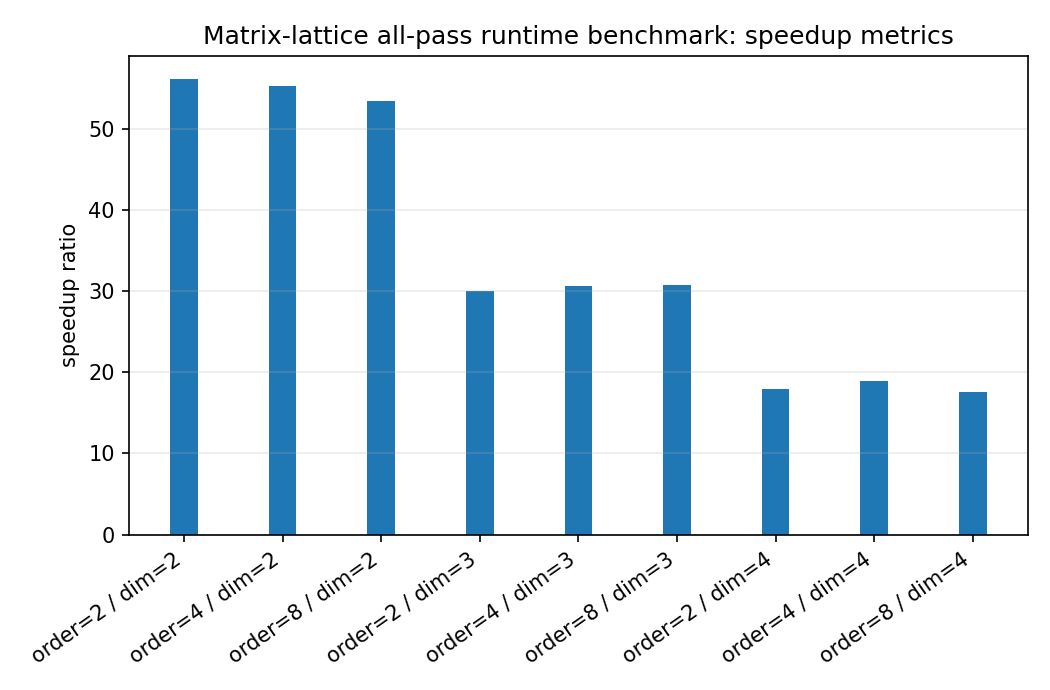

\[S = \frac{t_{NumPy}}{t_{compiled}},\]

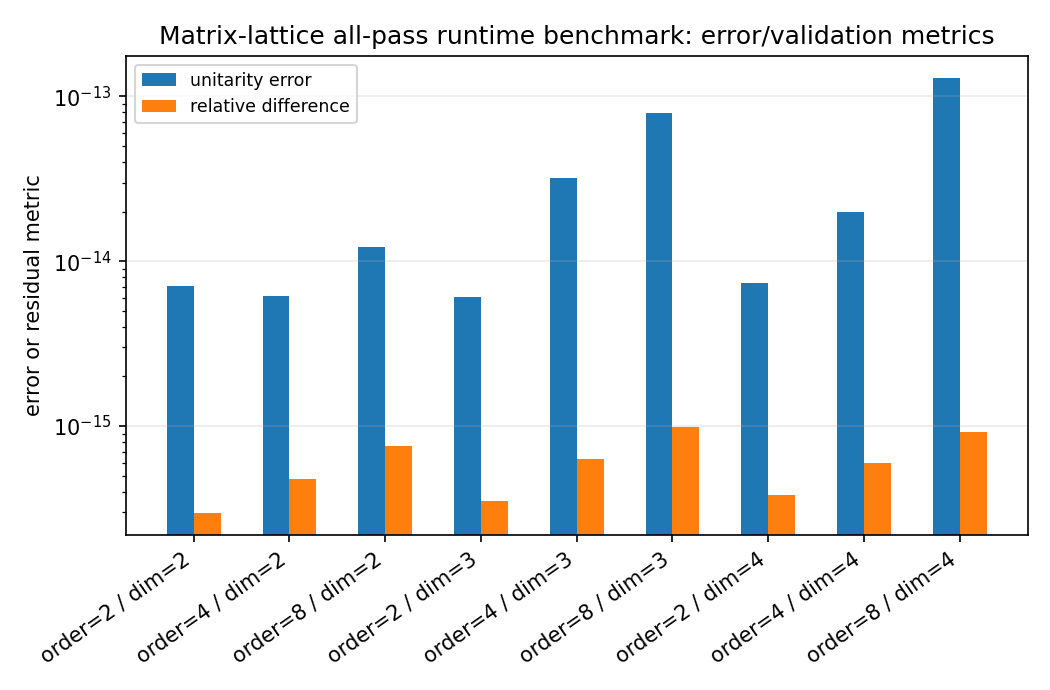

along with the relative difference between implementations and the maximum unitarity error over the frequency grid.

How to read the result

Look for relative differences near numerical precision, small unitarity error, and speedups above one for larger frequency grids/orders.

Run command

python benchmarks/matrix_lattice_runtime.py --dims 2 3 4 --orders 2 4 8 --n-freq 1024 --repeats 2 --n-threads 1 --output docs/benchmarks/generated/_artifacts/matrix_lattice_runtime/matrix-lattice-runtime.json

Run status

Return code: 0

Visual and data readout

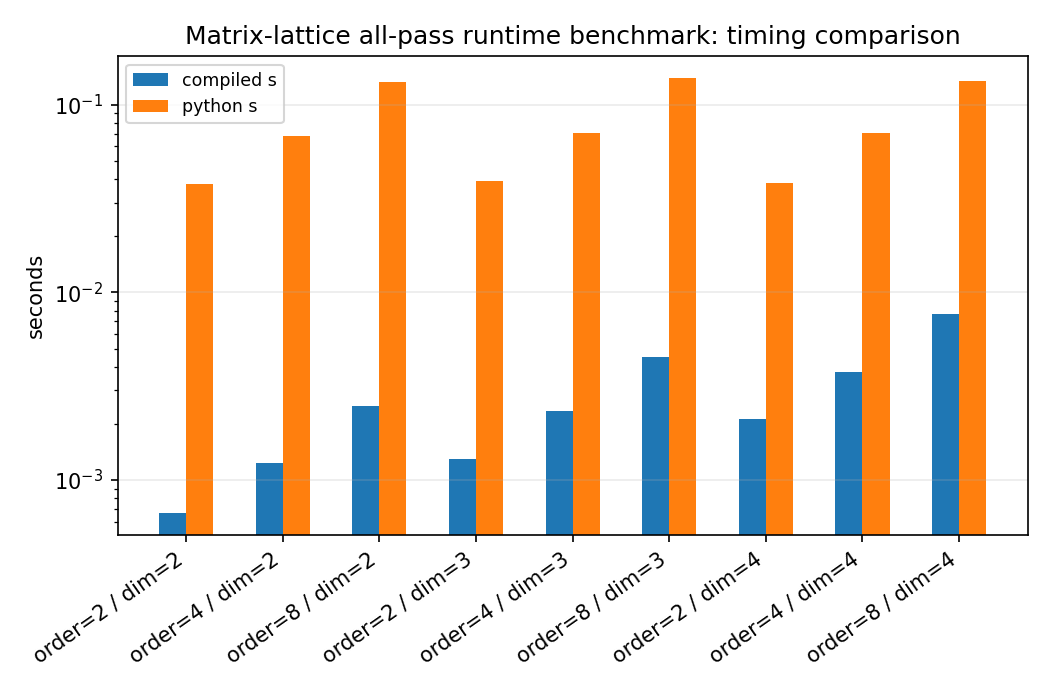

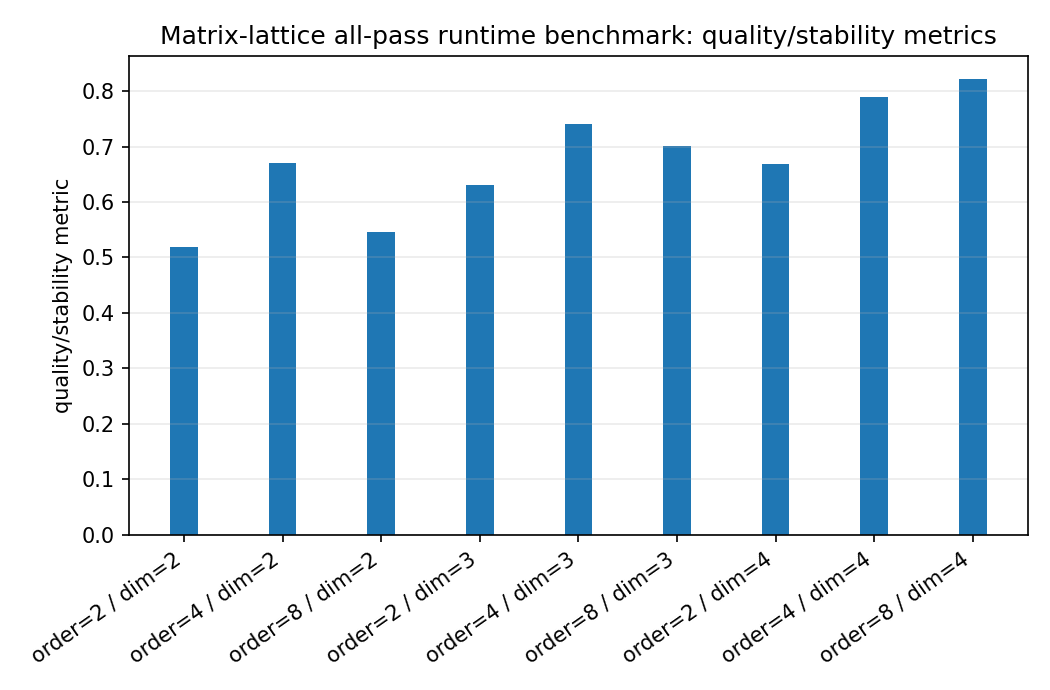

When the benchmark gallery is built with results, this page embeds PNG summaries generated from the same JSON/CSV artifacts. The raw data stay available below as downloads so exact numbers remain reproducible without making the public page read like console output.

Figures





Generated data files

• matrix-lattice-runtime.json

Source code

"""Benchmark matrix-lattice frequency-response evaluation runtime."""

from __future__ import annotations

import argparse
import json
import platform
import statistics
import time
from pathlib import Path

import numpy as np

import lattice_dsp as ld
from lattice_dsp import matrix_lattice as matrix_lattice_module


def make_filter(dim: int, order: int, seed: int) -> ld.MatrixLatticeAllPass:
    rng = np.random.default_rng(seed)
    reflections = [
        ld.contractive_matrix_from_raw(
            0.22 * (rng.normal(size=(dim, dim)) + 1j * rng.normal(size=(dim, dim))), margin=1e-6
        )
        for _ in range(order)
    ]
    residue = ld.unitary_polar_factor(
        rng.normal(size=(dim, dim)) + 1j * rng.normal(size=(dim, dim))
    )
    return ld.MatrixLatticeAllPass(reflections, residue=residue)


def median_runtime(fn, repeats: int) -> float:
    times = []
    for _ in range(repeats):
        start = time.perf_counter()
        fn()
        times.append(time.perf_counter() - start)
    return float(statistics.median(times))


def response_unitarity_error(response: np.ndarray) -> float:
    eye = np.eye(response.shape[1], dtype=np.complex128)
    return float(max(np.linalg.norm(g.conj().T @ g - eye, ord="fro") for g in response))


def run_case(
    dim: int, order: int, n_freq: int, repeats: int, n_threads: int, seed: int
) -> dict[str, float | int | bool]:
    filt = make_filter(dim, order, seed)
    omega = np.linspace(0.0, np.pi, n_freq)

    # Warm both paths before timing.
    compiled_response = filt.frequency_response(omega, n_threads=n_threads)
    python_response = matrix_lattice_module._frequency_response_numpy(
        filt.stage_blocks, filt.residue, omega
    )  # noqa: SLF001

    compiled_s = median_runtime(
        lambda: filt.frequency_response(omega, n_threads=n_threads), repeats
    )
    python_s = median_runtime(
        lambda: matrix_lattice_module._frequency_response_numpy(
            filt.stage_blocks, filt.residue, omega
        ),
        repeats,  # noqa: SLF001
    )
    rel_diff = float(
        np.linalg.norm(compiled_response - python_response)
        / max(np.linalg.norm(python_response), 1e-30)
    )
    speedup = python_s / compiled_s if compiled_s > 0.0 else float("inf")

    return {
        "dim": dim,
        "order": order,
        "n_freq": n_freq,
        "n_threads": n_threads,
        "compiled_s": compiled_s,
        "python_s": python_s,
        "speedup": speedup,
        "relative_difference": rel_diff,
        "unitarity_error": response_unitarity_error(compiled_response),
        "max_reflection_singular_value": filt.max_reflection_singular_value(),
        "real_scalar_parameter_count": filt.parameter_count(),
    }


def parse_args() -> argparse.Namespace:
    parser = argparse.ArgumentParser(description=__doc__)
    parser.add_argument("--dims", type=int, nargs="+", default=[2, 3, 4])
    parser.add_argument("--orders", type=int, nargs="+", default=[2, 4, 8])
    parser.add_argument("--n-freq", type=int, default=1024)
    parser.add_argument("--repeats", type=int, default=3)
    parser.add_argument("--n-threads", type=int, default=1)
    parser.add_argument("--seed", type=int, default=707)
    parser.add_argument("--output", type=Path, default=Path("reports/matrix-lattice-runtime.json"))
    return parser.parse_args()


def main() -> None:
    args = parse_args()
    if args.n_freq <= 0:
        raise SystemExit("--n-freq must be positive")
    if args.repeats <= 0:
        raise SystemExit("--repeats must be positive")

    rows = []
    for dim in args.dims:
        for order in args.orders:
            rows.append(
                run_case(
                    dim,
                    order,
                    args.n_freq,
                    args.repeats,
                    args.n_threads,
                    args.seed + 100 * dim + order,
                )
            )

    payload = {
        "python": platform.python_version(),
        "platform": platform.platform(),
        "has_openmp": bool(getattr(ld, "HAS_OPENMP", False)),
        "n_freq": args.n_freq,
        "repeats": args.repeats,
        "n_threads": args.n_threads,
        "description": "MatrixLatticeAllPass frequency-response benchmark. The compiled C++ path is compared with the NumPy reference evaluator.",
        "results": rows,
    }
    args.output.parent.mkdir(parents=True, exist_ok=True)
    args.output.write_text(json.dumps(payload, indent=2), encoding="utf-8")

    print(json.dumps({k: v for k, v in payload.items() if k != "results"}, indent=2))
    print()
    print(
        f"{'dim':>4} {'order':>5} {'params':>8} {'compiled_s':>11} {'python_s':>10} {'speedup':>8} {'unitarity':>11} {'rel_diff':>10}"
    )
    print("-" * 86)
    for row in rows:
        print(
            f"{row['dim']:4d} {row['order']:5d} {row['real_scalar_parameter_count']:8d} "
            f"{row['compiled_s']:11.5f} {row['python_s']:10.5f} {row['speedup']:8.2f} "
            f"{row['unitarity_error']:11.2e} {row['relative_difference']:10.2e}"
        )
    print(f"\nWrote {args.output}")


if __name__ == "__main__":
    main()
